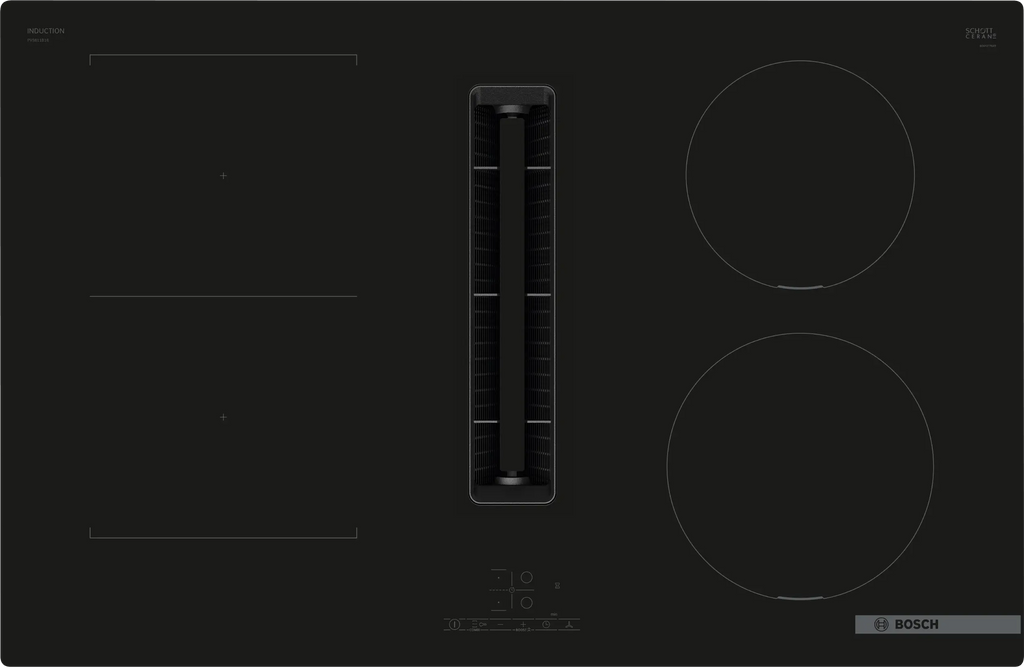

Bosch Induction Hob PVS811B16E

Series 4 Induction hob with integrated ventilation system 80 cm surface mount without frame

B Energy Rated

Technical Overview

Dimensions: 223x802x522 mm
Cooktop type: Induction with hood
Number of cooking zones: 4
Frame type: Frameless
Max. air extraction: 500 m³/h
Sound power at max. speed (2010/30/EC): 69 dB
Home Connect: No
Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.1

Highlights

Integrated ventilation: extract steam and cooking odours at the source.

Touch Select: Selection of the desired cooking zone and easy setting of the desired power level.

CombiZone: More flexibility by combining two cooking zones, for roasters and more.

Frameless Design: the hob surface is slightly elevated, to separate your cooking space from the worktop.

PowerBoost: up to 50% more power for faster heating on your induction hob.

QuickStart: start straight away and select the desired cooking level.

Specifications

General

Colour of appliance: Black
Width: 80 cm
Number of cooking zones: 4
Dimensions of the heating elements: 2 x (19,0 x 21,0 cm), 1 x (18,0 cm Ø), 1 x (21,0 cm Ø)
Power of the heating elements: 1 x 1.8 (3.1), 3 x 2.2 (3.7) kW
Frame type: Frameless
Number of radiant plates: 0
Induction plates number: 4
heating with booster: All
Max. air extraction: 500 m³/h
Boost position air extraction: 622 m³/h
Max. air recirculation: 441 m³/h
Boost position output recirculating: 595.0 m³/h
Sound power at max. speed (2010/30/EC): 69 dB
Sound power boost (2010/30/EC): 74 dB
Noise level: 69 dB(A) re 1pW
Included accessories: 1 x Slider for unducted recirculation, 1 x Clean Air Plus odor filter

Size and weight

Dimensions
223x802x522 mm
Dimensions of the packed product (HxWxD)
430x940x660 mm
Minimum height for installation
490 mm
Maximum height for installation
490 mm
Minimum width for installation
750 mm
Maximum width for installation
750 mm
Depth for installation
223 mm

Technical specifications

Connection rating: 7400 W
Voltage: 220-240/380-415 V
Length electrical supply cord: 110 cm
Plug type: no plug (electrical connection by electrician)
Included user manuals: [AR, DE, EN, ES, FR, IT, NL, PT, TR]

Comfort hob

Type of control: TouchControl
hotplate control settings: Variable 17-stage power settings for each zone
Cooking zone flexibility: Combi zone
PowerBoost: Yes
Avoid scratches on glass ceramic with GlassProtect: No
activeLight Plus: No
Avoid scorching with PerfectFry: No
PerfectCook - cooking sensor: No
PerfectCook sensor ready (sensor sold seperately): No
Powermove: No
Power Transfer: No
Quick Start: Yes
Keep warm function: No
Electronic timer: Yes
Timer: Switch-off timer (on appliance), Count-down timer (on appliance)

Comfort hood

SilentPowerDrive - efficient and extra silent: Yes
Boost position: Yes
Delay Shut off modes: Yes
Clean filter reminders: Yes
Number of speed settings: 3-stages + intensive setting

Connectivity

Home Connect: No
Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.1

Safety

Safety device: Child lock, Safety shut-off, ,
Residual heat indicator: Separate
