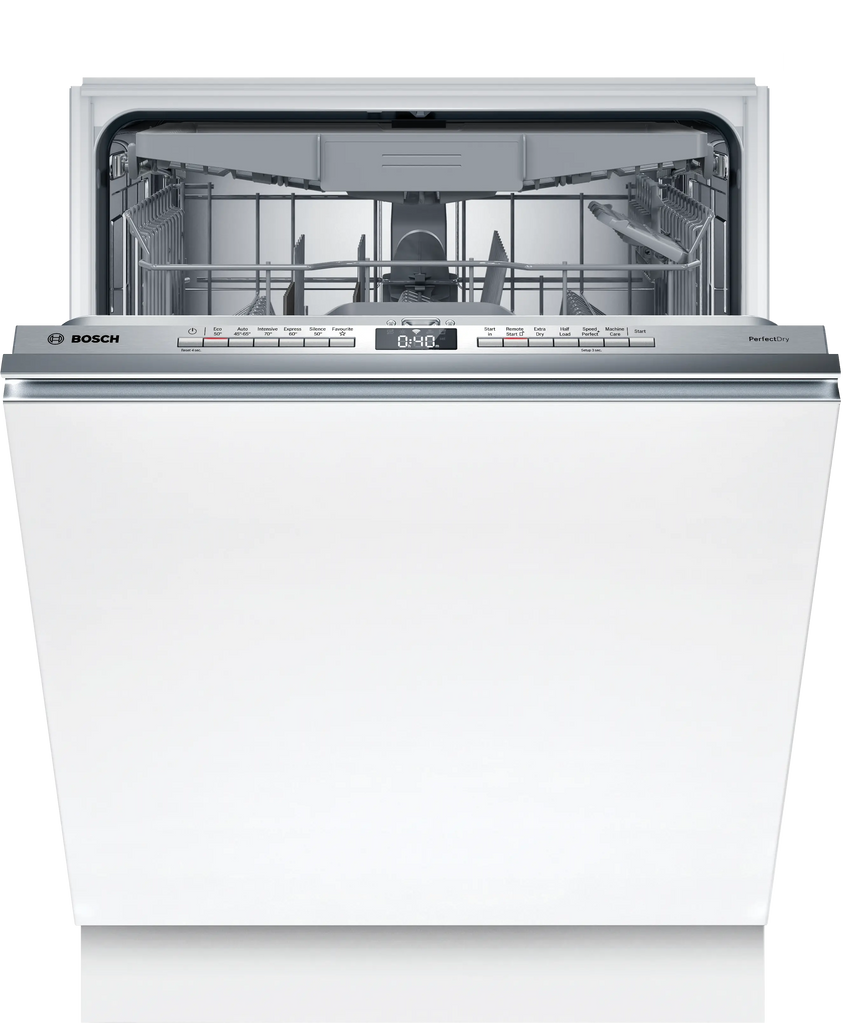

Bosch Fully-integrated Dishwasher SMV6ZCX10G

Series 6 fully-integrated dishwasher 60 cm

Technical Overview

Dimensions: 815x598x550 mm
Energy Efficiency Class: B
Footnote 1: Scale of Energy Efficiency Classes from A to G1
The water consumption of the eco programme in liters per cycle: 9.0 l
Airborne acoustical noise emission class: B
Drying system: Zeolith, Heat exchanger
Basket system: High Flexibility with Vario Flex basket
Home Connect: Yes
Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.2
AquaStop: Yes
Footnote 3: Please find warranty terms under www.bosch-home.ie/customer-service/care-protection-and-parts/additional-warranties#tab-navigation3

Highlights

PerfectDry: perfect drying results with low energy consumption, even for hard-to-dry items.

Silence Pro: the extremely quiet 40 dB dishwasher.

TimeLight: program status and remaining time clearly displayed on floor in high resolution.

VarioFlex-baskets and VarioDrawer: enhanced flexibility options with more space on all levels.

Bosch Home Connect app: home appliances with smart connectivity for an easier everyday life.

AquaStop: Bosch’s warranty in case of water damage – throughout the lifetime of the appliance.*

Specifications

General

Installation typology: Integrated
Built-in / Free-standing: Built-in
Colour of appliance: Not applicable
Removable top: No
Column installation: Yes
Adjustable plinth: Both horizontal and vertical
Energy Efficiency Class: B
Footnote 1: Scale of Energy Efficiency Classes from A to G1
Energy Consumption for 100 cycles Eco Programme: 65
Footnote 4: Energy consumption in kWh per 100 cycles (in programme Eco 50 °C)4
The energy consumption of the eco programme in kWH per cycle: 0.645 kWh/cycle
The water consumption of the eco programme in liters per cycle: 9.0 l
Airborne acoustical noise emission class: B
Airborne acoustical noise emissions: 40 dB(A) re 1pW
Programme duration: 3:35 h
Footnote 5: Duration of programme Eco 50 °C5
Maximum number of place settings: 14
List of programmes: Economy, Auto 45-65°C, Intensive, Short, Night program, Custom program
Additional operational options: Remote Start, Extra dry, Half Load, varioSpeed Plus, Machine Care Programme
AquaStop: Yes
Footnote 3: Please find warranty terms under www.bosch-home.ie/customer-service/care-protection-and-parts/additional-warranties#tab-navigation3
Drying system: Zeolith, Heat exchanger
Tub material: Stainless steel

Basket and cutlery system

Basket system: High Flexibility with Vario Flex basket
3rd Rack: 3rd Rack 1.0
Cutlery system: Cutlery drawer
Number of Flip Tines in Upper Rack: 2
Number of Flip Tines in Lower Rack: 4
Number of cup racks in the upper basket: 2
Anti-slip protection in the upper basket: No
Glass holder in the lower basket: No
Adjustable upper basket: Rackmatic 3-stage

Size and weight

Dimensions
815x598x550 mm
Dimensions of the packed product (HxWxD)
880x660x670 mm
Net weight
44.8 kg
Depth with open door 90 degree
1150 mm
Minimum height for installation
815 mm
Maximum height for installation
875 mm
Minimum width for installation
600 mm
Maximum width for installation
608 mm
Depth for installation
550 mm
Weight furniture front (min - max)
2.5 - 8.5 kg
Height of removable worktop
0 mm
1 / 2

Comfort

TFT display: No
Interior light: No
Program status indication: Time light
Drying progress indicator: End of program audible
Start delay time max (h): 24 h

Cleaning technology and sensoric

Precise Glass Protection: No
SilentPowerDrive - efficient and extra silent: Yes
aquasensor: Yes
Water management system: No
Detergent detection: Yes

Connectivity

Home Connect: Yes
Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.2
Home Connect Features: Remote Monitoring and Control
Add-On functions via Home Connect app: Hygiene Plus, Intensive Zone, Silence on Demand

Safety

AquaStop: Yes
Footnote 3: Please find warranty terms under www.bosch-home.ie/customer-service/care-protection-and-parts/additional-warranties#tab-navigation3
Child safety devices: No
