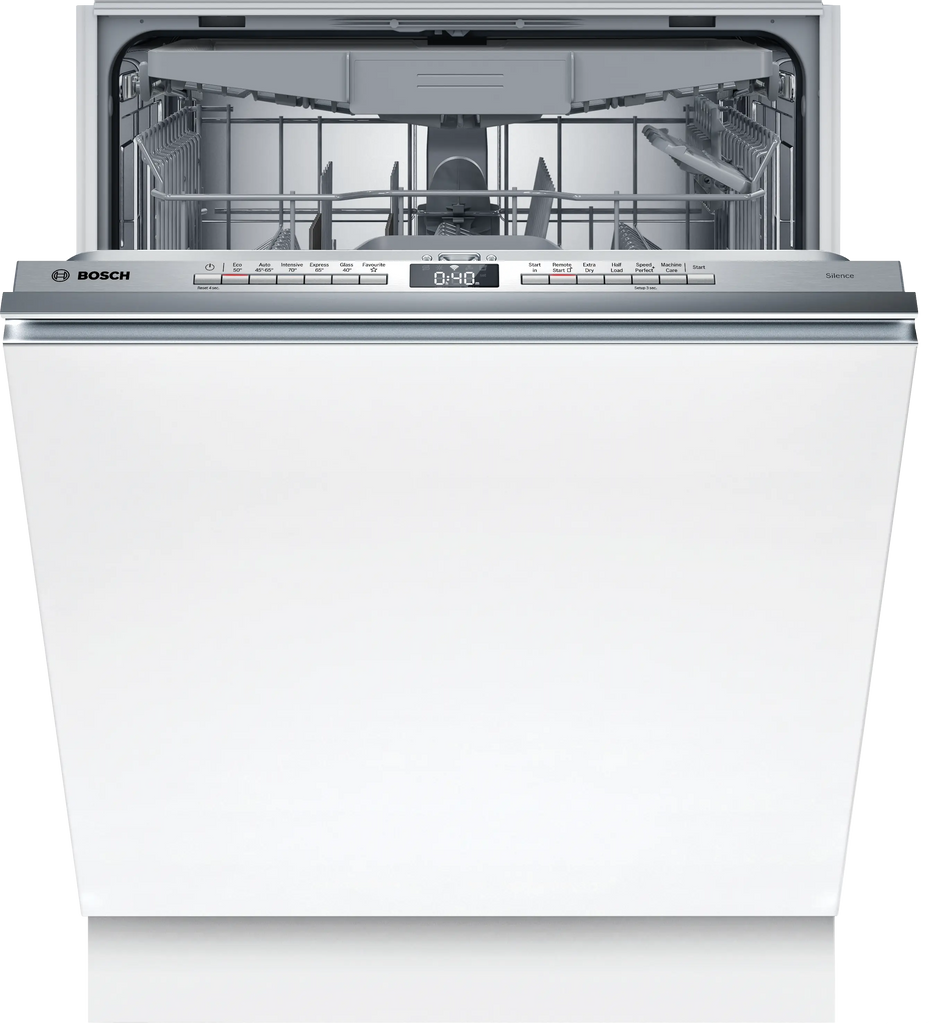

Bosch Fully-integrated Dishwasher SMV4HVX00G

Series 4 Fully-integrated dishwasher 60 cm

5 Year Warranty Upon registration
D Energy Rated
9.0 litres water consumption per wash cycle.
14 programs

Technical Overview

Dimensions: 815x598x550 mm
Energy Efficiency Class: D
Footnote 1: Scale of Energy Efficiency Classes from A to G1
The water consumption of the eco programme in liters per cycle: 9.0 l
Airborne acoustical noise emission class: C
Drying system: Heat exchanger
Basket system: High Flexibility with Vario Flex basket
Home Connect: Yes
Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.2
AquaStop: Yes
Footnote 3: Please find warranty terms under: www.bosch-home.co.uk/customer-service/care-protection-and-parts/additional-warranties#tab-navigation3

Key Features

Extra Dry: extra drying option for difficult-to-dry loads.

SpeedPerfect+: Reduced washing time, perfectly cleaned dishes.

Silence on demand: up to 30 min noise reduction at any time via the Bosch Home Connect App.

Home Connect: an easy solution to help you get the most out of your appliance, with flexible control and additional features.

SilentPower Drive: powerful, quiet, and durable.

ActiveWater: Perfect results with optimised water and energy use.

Specifications

General
Installation typology: Integrated
Built-in / Free-standing: Built-in
Colour of appliance: N/A
Removable top: No
Variable hinge: No
Column installation: Yes
Adjustable plinth: Both horizontal and vertical
Energy Efficiency Class: D
Footnote 1: Scale of Energy Efficiency Classes from A to G1
Energy Consumption for 100 cycles Eco Programme
Footnote 4: Energy consumption in kWh per 100 cycles (in programme Eco 50 °C)4: 85 kWh/100 cycles
The energy consumption of the eco programme in kWH per cycle: 0.849 kWh/cycle
The water consumption of the eco programme in liters per cycle: 9.0 l
Airborne acoustical noise emission class: C
Airborne acoustical noise emissions: 46 dB(A) re 1pW
Programme duration
Footnote 5: Duration of programme Eco 50 °C5: 4:30 h
Maximum number of place settings: 14
List of programmes: Economy, Auto 45-65°C, Intensive, Quick L, Glass 40°C, Custom program
Additional operational options: Remote Start, Extra dry, Half Load, varioSpeed Plus, Machine Care Programme
AquaStop: Yes
Footnote 3: Please find warranty terms under: www.bosch-home.co.uk/customer-service/care-protection-and-parts/additional-warranties#tab-navigation3
Drying system: Heat exchanger
rackmatic normal: Yes
Tub material: Stainless steel with Polinox base

Basket and cutlery system

Basket system: High Flexibility with Vario Flex basket
3rd Rack: 3rd Rack 1.0
Cutlery system: Cutlery drawer
Number of Flip Tines in Upper Rack: 2
Number of Flip Tines in Lower Rack: 4
Number of cup racks in the upper basket: 2
Anti-slip protection in the upper basket: No
Glass holder in the lower basket: No
Adjustable upper basket: Rackmatic 3-stage

Size and weight

Dimensions: 815x598x550 mm
Dimensions of the packed product (HxWxD): 880x660x670 mm
Net weight: 34.0 kg
Depth with open door 90 degree: 1150 mm
Minimum height for installation: 815 mm
Maximum height for installation: 875 mm
Minimum width for installation: 600 mm
Maximum width for installation: 608 mm
Depth for installation: 550 mm
Weight furniture front (min - max): 2.5 - 8.5 kg
Height of removable worktop: 0 mm

Comfort

Door-opening sensor: No
TFT display: No
Interior light: No
Program status indication: Program Status Light
Drying progress indicator: End of program audible
Start delay time max (h): 24 h

Cleaning technology and sensoric

Precise Glass Protection: No
SilentPowerDrive - efficient and extra silent: Yes
aquasensor: Yes
Water management system: No
Detergent detection: Yes

Connectivity

Home Connect: Yes
Footnote 2: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.2
Home Connect Features: Remote Monitoring and Control
Add-On functions via Home Connect app: Hygiene Plus, Intensive Zone, Silence on Demand

Safety

AquaStop: Yes
Footnote 3: Please find warranty terms under: www.bosch-home.co.uk/customer-service/care-protection-and-parts/additional-warranties#tab-navigation3
Child safety devices: No
