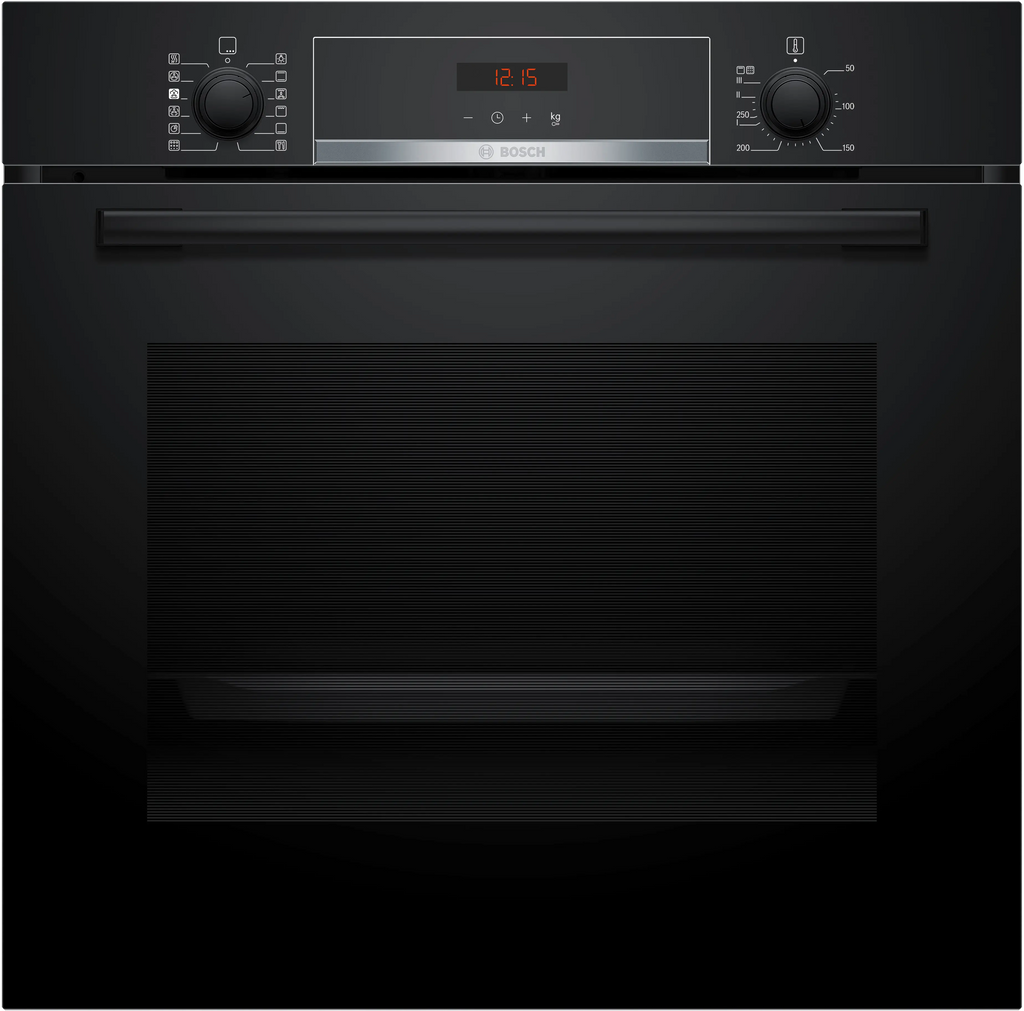

Bosch Built-in Oven HQA574BB3B

Series 4 Built-in oven with added steam function 60 x 60 cm Black

71L Capacity
A+ Energy Rated
5 year warranty upon registration

Technical Overview

Dimensions: 595x594x548 mm
Display control: LED display knob
Integrated Cleaning system: Pyrolytic+Hydrolytic
Steam technology: Added Steam function with water bowl - for improved baking results
Sensors: Not applicable
Ease of Access: Accessory
Plug type: no plug (electrical connection by electrician)
Home Connect: No
Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.1

Highlights

Energy Efficiency Class A+: thanks to improvement of the oven construction you can save energy while cooking.

Added steam function: by adding steam, baked food turn out crispy on the outside and fluffy on the inside.

Hotair Steam: heat and humidity are distributed equally within the oven interior so food turns out crispy on the outside and juicy on the inside.

AutoPilot 10: every dish is a perfect success thanks to 10 pre-set automatic programmes.

3D Hotair: even heat distribution for perfect results on up to three levels.

Pop-out controls: Make the front of the oven easy to clean and give it a sleek look.

Specifications

General

Where can the appliance be installed: Base cabinet, high cupboard installation
Are some hobs controls integrated?: No
Which kind of hobs can be controlled: Not applicable
Colour of appliance: Black
Color / Material Door: Black
Color / Material panel: Black
Display control: LED display knob
Number of heating & combination modes: 8
Cooking method: Full width grill, Hotair gentle, Hot Air, Conventional heat, Pizza setting, Bottom heat, Hot air grilling
Range of temperature: 50-275 °C
Steam technology: Added Steam function with water bowl - for improved baking results
Integrated Cleaning system: Pyrolytic+Hydrolytic
Ease of Access: Accessory
Door hinge: Flap door / flap door with muted doorhinge
Usable volume (of cavity) - NEW (2010/30/EC): 71 l
Energy efficiency rating: A+
Safety device: Child lock
Included accessories: 2 x combination grid, 1 x universal pan

Size and weight

Dimensions
595x594x548 mm
Dimensions of the packed product (HxWxD)
675x660x690 mm
Minimum height for installation
585 mm
Maximum height for installation
595 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Net weight
36.9 kg
Length electrical supply cord
120 cm

Technical specifications

Plug type: no plug (electrical connection by electrician)
Length electrical supply cord: 120 cm
Voltage: 220-240 V
Connection rating: 2990 W
Fuse protection: 13 A
Included user manuals: [EN]

Comfort

Supporting systems: Automatic programmes (10)
Less time needed for preheating: Yes
Pizza setting: Yes
Crisp function: No
Sensors: Not applicable
Hotair: 3D (even heat distribution on up to three levels)
Automatic door opening via voice control: No

Connectivity

Home Connect: No
Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.1
