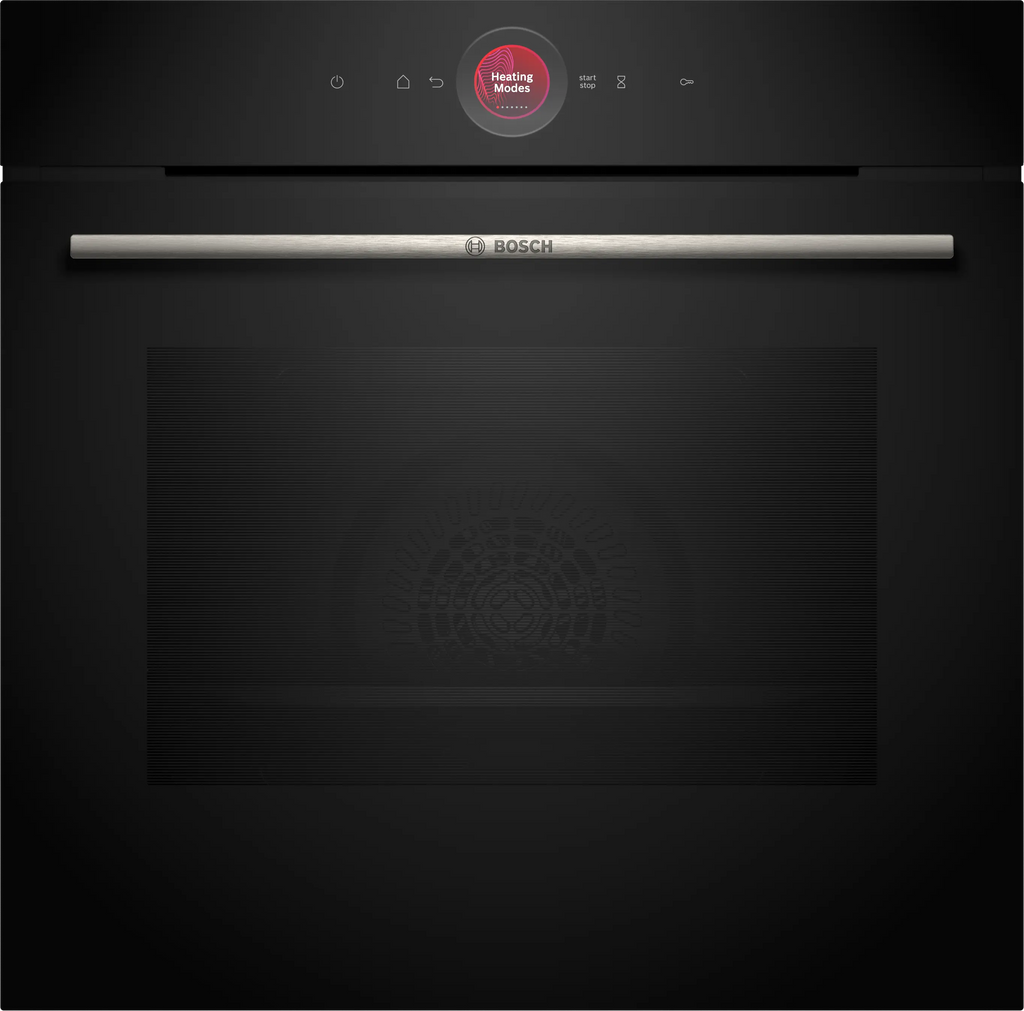

Bosch Built-in Oven HBG7741B1B

Series 8 Built-in oven 60 x 60 cm Black

71L Capacity
A+ Energy Rated

Technical Overview

Dimensions: 595x594x548 mm
Display control: TFT touchdisplay with digital control ring
Integrated Cleaning system: Pyrolytic+Hydrolytic
Steam technology: Not applicable
Sensors: Not applicable
Ease of Access: Accessory
Plug type: no plug (electrical connection by electrician)
Home Connect: Yes
Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.1

Highlights

Digital Control Ring: simple and intuitive oven control.

TFT Touch Display: intuitive control with the Digital Control Ring and TFT touchscreen.

Automatic Switch-off: stops cooking as soon as the dish is done.

Oven Assistant with Voice Control: easily set the right programme.

Pyrolytic self-cleaning: automatic oven cleaning, with wipe-away ash.

Recipe World: delicious inspiration to match your taste.

Specifications

General

Where can the appliance be installed: Base cabinet, high cupboard installation
Are some hobs controls integrated?: No
Which kind of hobs can be controlled: Not applicable
Colour of appliance: Black
Color / Material Door: Black
Color / Material panel: Black
Display control: TFT touchdisplay with digital control ring
Number of heating & combination modes: 14
Cooking method: Defrost, Air fry, Full width grill, Hotair gentle, Hot Air, Half width grill, Conventional heat, Conventional heat gentle, Pizza setting, low temperature cooking, Bottom heat, Hot air grilling, pre-heating, warming
Heating methods only via Home Connect app: Let rest, pre-heating
Range of temperature: 30-300 °C
Steam technology: Not applicable
Integrated Cleaning system: Pyrolytic+Hydrolytic
Ease of Access: Accessory
Door hinge: Flap door / flap door with muted doorhinge
Usable volume (of cavity) - NEW (2010/30/EC): 71 l
Energy efficiency rating: A+
Safety device: Child lock
Included accessories: 2 x combination grid, 1 x universal pan, 1 x air fry & grill tray

Size and weight

Dimensions
595x594x548 mm
Dimensions of the packed product (HxWxD)
670x670x680 mm
Minimum height for installation
585 mm
Maximum height for installation
595 mm
Minimum width for installation
560 mm
Maximum width for installation
568 mm
Depth for installation
550 mm
Net weight
36.9 kg
Length electrical supply cord
120 cm

Technical specifications

Plug type: no plug (electrical connection by electrician)
Length electrical supply cord: 120 cm
Voltage: 220-240 V
Connection rating: 3600 W
Fuse protection: 16 A
Included user manuals: [EN]

Comfort

Supporting systems: Dishes
Less time needed for preheating: Yes
Pizza setting: Yes
Crisp function: No
Air Fry function: Yes
Sensors: Not applicable
Hotair: 3D (even heat distribution on up to three levels)
Cooking-Assistant in Home Connect App: yes (available with connected Home Connect account)
Voice control via voice assistant: yes (available with connected Home Connect account & third party, e.g. Alexa, is required)
Automatic door opening via voice control: No

Connectivity

Home Connect: Yes
Footnote 1: Some of the features displayed can be accessed only if the device is connected to a Home Connect Account and a SingleKey ID account via the Internet. Home Connect is a service of Home Connect GmbH. For more information on Home Connect, visit www.home-connect.com.1
Home Connect Features: iService Remote, Remote Monitoring and Control
